جزئیات محصول
Place of Origin: Baoji, China
نام تجاری: LHTi
گواهی: ISO9001,CE,etc
Model Number: Titanium Ball Valves ASME B16.34
شرایط پرداخت و حمل و نقل
Minimum Order Quantity: 1 piece
قیمت: negotiable
Packaging Details: Plywood case or pallet, or as per your requirement
Delivery Time: about 7-14 days for delivery
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000 Pieces Per Month
Pressure Rating: |
Class 150 - Class 600 |
Material: |
Titanium Alloy |
Operation Method: |
Lever, Gear, Actuator |
Size: |
1/2 |
End Connections: |
Flanged, Butt Weld, Socket Weld, Threaded |
Actuator Type: |
Manual, Pneumatic, Electric |
Temperature Rating: |
-196°C - 600°C |
Seat Material: |
PTFE, RPTFE, PEEK, PCTFE, Nylon, Metal |
Pressure Rating: |
Class 150 - Class 600 |
Material: |
Titanium Alloy |
Operation Method: |
Lever, Gear, Actuator |
Size: |
1/2 |
End Connections: |
Flanged, Butt Weld, Socket Weld, Threaded |
Actuator Type: |
Manual, Pneumatic, Electric |
Temperature Rating: |
-196°C - 600°C |
Seat Material: |
PTFE, RPTFE, PEEK, PCTFE, Nylon, Metal |

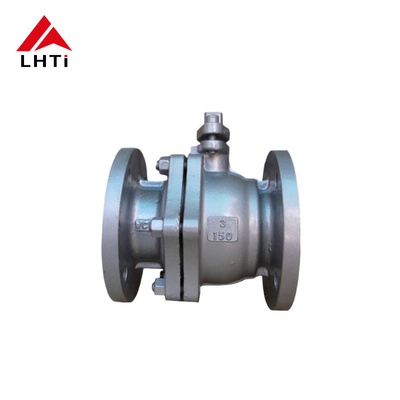

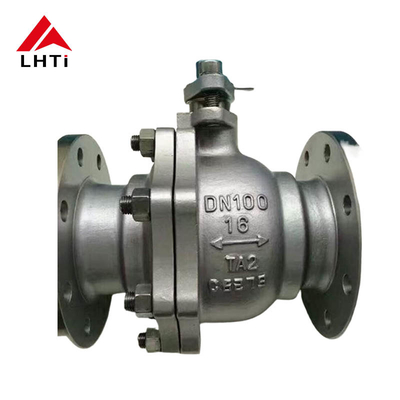

Gr 2 ASME B16.34 Titanium Ball Valve flange Forged Titanium Ball Corrosion Resistant 6 Inch Ball Valve
Product Description:
Titanium ball valves are used as devices for diverting, mixing, or switching the flow direction. These valves adopt a top-mounted structure, which reduces the number of connecting bolts in the valve body under conditions of high pressure and large diameters. This design enhances the reliability of the valve and helps overcome the impact of the system's weight on the normal operation of the valve.
Features of Titanium Ball Valve:
The ball of a titanium ball valve is floating. Under the action of medium pressure, the ball can produce a certain displacement and press tightly against the sealing surface of the outlet end to ensure the sealing of the outlet end. The main advantage of the American Standard titanium ball valve is that it utilizes the excellent stability and self-passivation capability of the oxide film formed on titanium metal in highly corrosive environments, allowing it to resist strong corrosion in various harsh working conditions.
Low Flow Resistance: Ball valves have relatively low fluid resistance among all valve types. Even for reduced bore ball valves, the fluid resistance is quite small.
Good Sealing Performance: The sealing performance of American Standard titanium ball valves is excellent. The valve seat (sealing ring) is generally made of elastic materials such as PTFE (polytetrafluoroethylene), which ensures sealing easily. Moreover, the sealing force of the ball valve increases with the pressure of the medium.
Reliable Stem Sealing: The stem of a ball valve only rotates 90° during opening and closing operations, so the packing seal of the stem is not easily damaged. Additionally, the sealing force of the reverse seal of the stem increases with the pressure of the medium.
Product Specifications:
| Product Technical Specifications: | |
| Pressure Rating: | Class 150-600Lb |
| Nominal Diameter: | 1/2" - 10" |
| Drive Mode: | Handle, Worm Gear, Pneumatic, Hydraulic, Electric |
| Body, Bonnet: | TA1,TA2,TA10,Gr2,Gr3 |
| Ball: | TA1,TA2,TA10,Gr2,Gr3 |
| Stem: | TA1,TA2,TA10,TC4,Gr2,Gr3,Gr5 |
| Sealing Ring: | PTFE,RPTFE,PPL,PEEK |
| American Standard Titanium Ball Valve Model: | Q41F- 150Lb(Ti),Q41F-300Lb(Ti),Q41F-600Lb(Ti),Q341F-150Lb(Ti),Q341F-300Lb(Ti), Q341F-600Lb(Ti),Q341F-150Lb(A),Q341F-300Lb(A),Q341F-600Lb(A) |
| Design Standards: | GB/T12237,API6D,ASME B16.34 |
| Face-to-Face Dimensions: | GB/T12221,API6D,ASME B16.10 |
| Flange Connections: | HG,GB,JB,API,ANSI,ISO,BS,DIN,NF,JIS |
| Testing Standards: | JB/T9092,GB/T13927,API6D,API598 |
Grades of Titanium Ball Valve:
Titanium ball valves, known for their excellent corrosion resistance and strength, are widely used in various demanding environments, including chemical, petroleum, pharmaceutical, and marine engineering fields:
TA1 (Gr1)-Pure titanium, offering the best ductility and toughness, easy to form and weld.
TA2 (Gr2)-Pure titanium, with good overall performance including good corrosion resistance and moderate strength, easy to form and weld.
TA9 (Gr7)-Primarily titanium with the addition of 0.12-0.25% palladium (Pd), significantly enhancing its corrosion resistance, especially in reducing environments.
TA10 (Gr12)-Titanium alloy containing small amounts of molybdenum (Mo) and nickel (Ni), providing better strength and heat resistance than pure titanium while maintaining good corrosion resistance.
TC4 (Gr5)-Titanium alloy mainly consisting of titanium with the addition of 6% aluminum (Al) and 4% vanadium (V), possessing very high strength and hardness, good corrosion resistance, and low density.
Applications of Titanium ball valves:
Titanium ball valves have a wide range of applications in various industrial fields, mainly including the following aspects:
Chemical Industry: Due to the excellent corrosion resistance of titanium materials, titanium ball valves are commonly used in chemical production processes that involve handling corrosive media, such as acid and alkali solutions, and oxides.
Petroleum and Natural Gas Industry: Titanium ball valves play a crucial role in the extraction, transportation, and processing of petroleum and natural gas. They are used to control the flow and pressure of fluids, ensuring the safe and stable operation of the system.
Marine Engineering: Titanium ball valves have good seawater corrosion resistance, making them widely used in marine engineering applications, such as fluid control systems in subsea pipelines and offshore platforms.
Aerospace Field: Titanium ball valves are extensively used in aerospace hydraulic systems, fuel systems, etc., due to their lightweight and high-strength characteristics that meet the requirements of aircraft.
Food and Pharmaceutical Industries: Since titanium materials are non-toxic and do not contaminate food or medicine, titanium ball valves are often used in fluid control systems in food processing and pharmaceutical industries.
